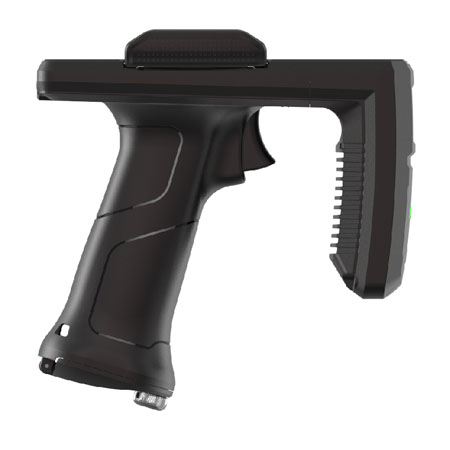

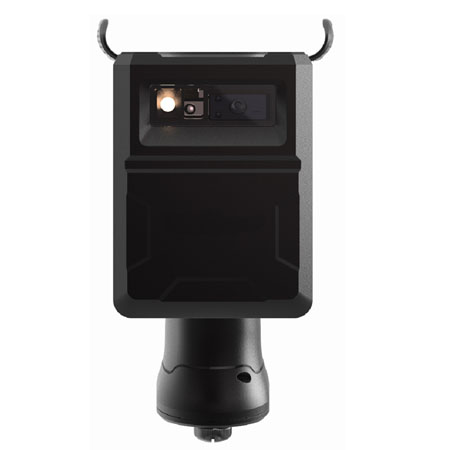

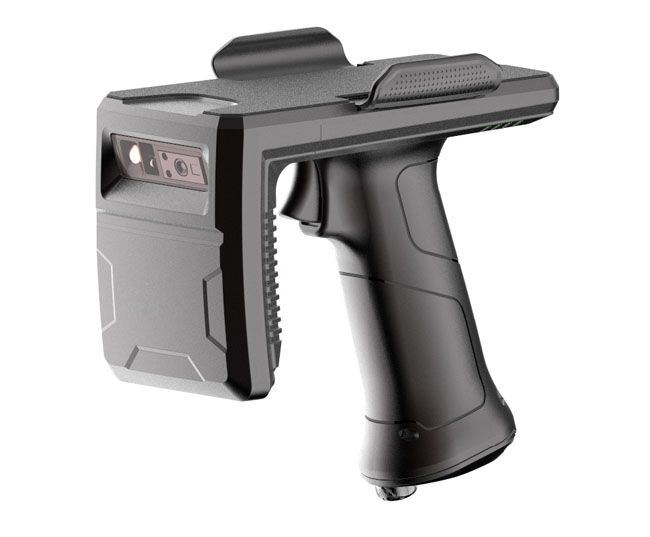

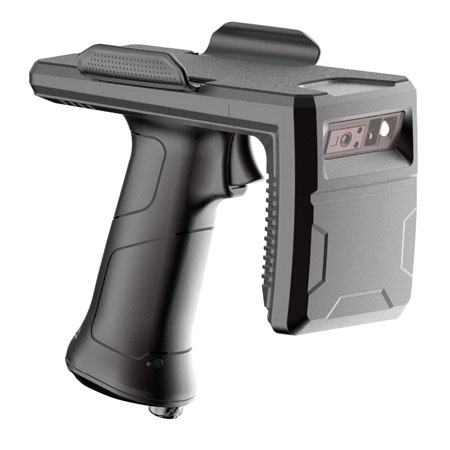

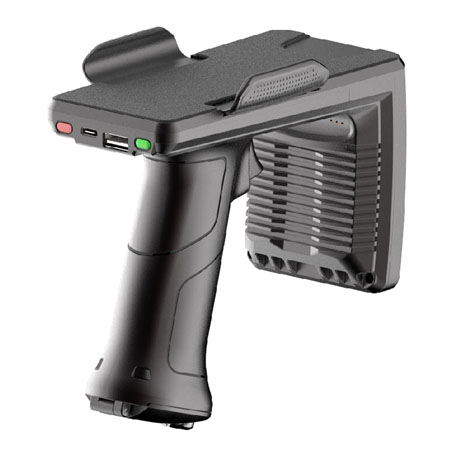

Portable Combined Multi-function Mobile Phone Scanner. Strong versatility Adjustable buckle can be combined with 5~8 inch mobile phone/tablet portable.
Strong versatility Adjustable buckle can be combined with 5~8 inch mobile phone/tablet portable. (has passed the utility model patent). With lighting and cross aiming, you can read barcode targets in a completely dark. When the USB cable is plugged into the interface, it will automatically charge without pressing any buttons. HW & SW dual protection, priority to enable software protection.
Product Features：
1. Strong versatility:

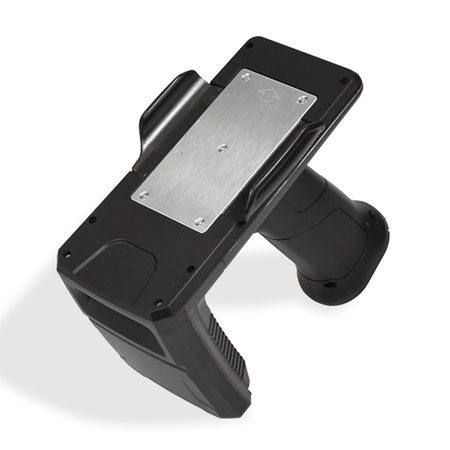

Adjustable buckle can be combined with 5~8 inch mobile phone/tablet portable. (has passed the utility model patent).
2. Versatile on-demand selection:
UHF comes standard with 1D/2D scanning, IrDA meter reading, glare flashlight, etc.
3. High performance UHF read function:
Support 6B & 6C protocol, can read UHF tags from a long distance, and also support simultaneous multi-tag reading.
4. With charging function:
Built-in large-capacity 6000mAh battery can charge the mobile phone at any time to complete the outdoor mobile phone life.
5. Bluetooth Communication:
The software adapts quickly, the mobile phone does not need to make any changes (providing communication interface, SDK and source code), which greatly shortens the project landing time.
6. Long life cycle, low cost of iteration:
After the mobile phone is upgraded or replaced with a new battery, this is the latest PDA: not only can the low-cost sharing of the mobile phone/table change performance, but also the cost of purchasing.Dynamic data collection function.

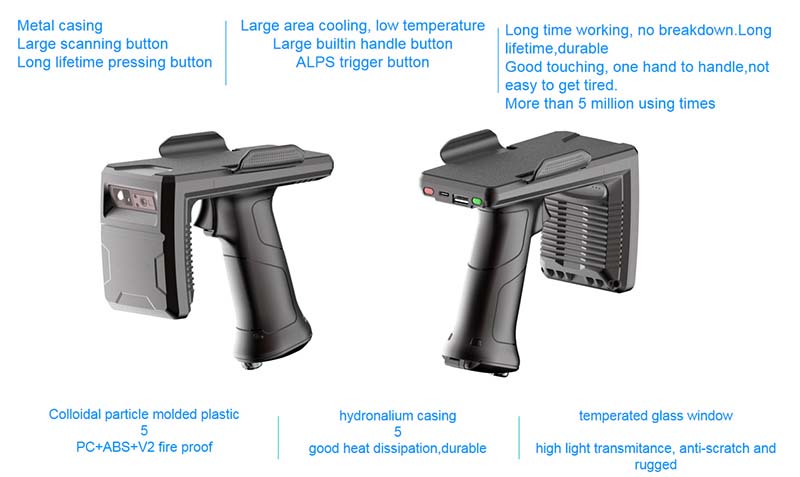

7. Good heat dissipation and durability:
Metal body heat dissipation is good, long life is not dead, and it is durable and durable.
8. Tilt design with handle:
The handle has a good grip, easy operation and good reading angle.
Specification:
Charge and discharge function parameter | Charging Voltage | 5.0±0.25V DC | ||
Output Voltage | 5.0±0.25V DC | |||
Nominal Capacity | 6000mAh | |||
Standard charging currency | <2A | |||
Standard charing Method | CV (constant voltage 5.0V) charging | |||
Charging Time | ≤ 4 hours (1 charge cycle time for BACKPOWER internal battery) | |||
MAX charging currency | <2A | |||
MAX discharging currency | <2A | |||
Communic ation Interface | Bluetooth | |||
UHF Function | Working frequency | 860Mhz – 960Mhz | ||
Air interface protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C ISO 18000-6B | |||
Output Power | 0~33dBm | |||
Antenna | 3dbi circularly polarized antenna | |||
Reading distance | 3~15m（Related to factors such as label size） | |||
Read tag peak speed | > 200 sheets / sec | |||
1D/2D functions | Image sensor | 752×480 CMOS | ||
Light | CCD LED 625±10nm | |||
Focus | Laser 650nm | |||
Symbologies | 2D | PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), 汉信码 | ||
1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Standard 2 of 5, Plessey, MSI-Plessey ,etc | |||
Precision | ≥3mil | |||
（Options）Typical reading depth of field | EAN-13 | 60mm~290mm (13mil) | ||
PDF417 | 55mm~135mm (6.7mil) | |||
Code39 | 55mm~165mm (5mil) | |||
Data Matrix | 55mm~130mm (10mil) | |||
QR Code | 45mm~175mm (15mil) | |||
Symbol contrast | ≥20%Reflection difference | |||
Barcode sensitivity | Rotate 360°, tilt ±55°, deflection ±55° | |||
Field of view | 36° horizontal and 23° vertical | |||
Infrared emission tube center wavelength | 940nm | |||
IrDA Power meter reading function (optional) | Infrared receiver tube | 38kHz Modulation frequency | ||
Reading distance | >3m | |||
Transmission baud rate | 1200bps | |||
Data communication bias | 35° | |||
Working currency | ≤30mA | |||
Flashlight | Powerful torch | 1W Strong light flashlight for use in dark environments. | ||
Environment | Operating temperature | 0℃~45℃ | ||
Storage temperature | -10℃~ +45℃ | |||
Working humidity | 5% - 95% ( No condensation ) | |||
Standard | Type C USB charging cable | |||
Certificate | ||||
Electronic manual | ||||
Options | 5V/2A & 5V/1A two-way separate output high-quality car charger (the indoor mobile phone charger can be used to charge the mobile phone and the back clip at the same time, the outdoor car can be charged, the car charger can also charge the tablet.) | |||
Back clip lanyard | ||||
AC charger | ||||
Phillips screwdriver | ||||
Waist bag | ||||
