With 256*192 Pixels Uncooled Thermal Imaging Temperature Measurement Module, This Product is Non-contact, Fast, Convenient, Intuitive, Security Etc.it Overcomes the Shortcomings of Traditional Thermometers Such As Thermometers, Forehead Thermometers, Point Thermometers and Ear Thermometers in Measuring Only for Individuals, Time-consuming and Easy to Cross Infection, Which Could Effectively Control the Spread of the Epidemic And Reduce Casualties.
With 256*192 Pixels Uncooled Thermal Imaging Temperature Measurement Module, This Product is Non-contact, Fast, Convenient, Intuitive, Security Etc.it Overcomes the Shortcomings of Traditional Thermometers Such As Thermometers, Forehead Thermometers, Point Thermometers and Ear Thermometers in Measuring Only for Individuals, Time-consuming and Easy to Cross Infection, Which Could Effectively Control the Spread of the Epidemic And Reduce Casualties.
Features of Face Temperature Recognition
*Long-distance large-scale scene accurate rapid screening
*Non-contact to avoid cross-contamination
*High precision algorithm of human body temperature measurement
*External Large screen display
*Multi-person abnormal body temperature alarm and High Temperature Alarm
*Intelligent calibration of inner body surface
Many Person Temperature Detect Parameters
Product | Body Temperature Screening | |
RGB Resolution | 5 million | |
Field of view | 25.5°xl9.2° | |
Lens Focal Length | 2.8mm | |
Camera Resolution | 256*192 | |
Temperature Accuracy | ± 0.5 °C | |
Temperature Range | -20 °C 〜+ 120 °C (expandable to 600 °C) | |
Picture Correction | Shutter correction | |
The Main Parameters | ||
Functions | HD synchronized temperature display, remote video transmission, auto high temperature alarm and capture, voice alarm and video recording | |
Temperature Analysis | Support Max./Min.temperature summary and analysis | |
Sensor Resolution | 2592 (H) x 1944 (V) | |
Thermal Imaging Camera Interface | USB | |

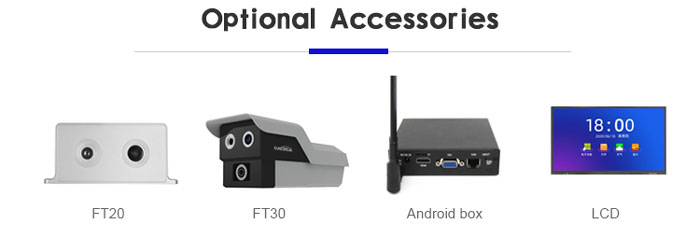

Thermal Imaging Camera | FT20 | F30 |
Size(mm) | 91(L)*45(W)*25(H) | 184(L)*90(W)*87(H) |
Weight | <40g | <80g |
