R10 can scan the barcode on paper and merchandise easily. Supports Bluetooth 4.2 and the transmission distance can reach 30m in outdoor and it can be connected to PC directly; It can be used in qr code payment, merchandise code scan and warehouse inventory checking.
R10 can scan the barcode on paper and merchandise easily. Supports Bluetooth 4.2 and the transmission distance can reach 30m in outdoor and it can be connected to PC directly; It can be used in qr code payment, merchandise code scan and warehouse inventory checking.

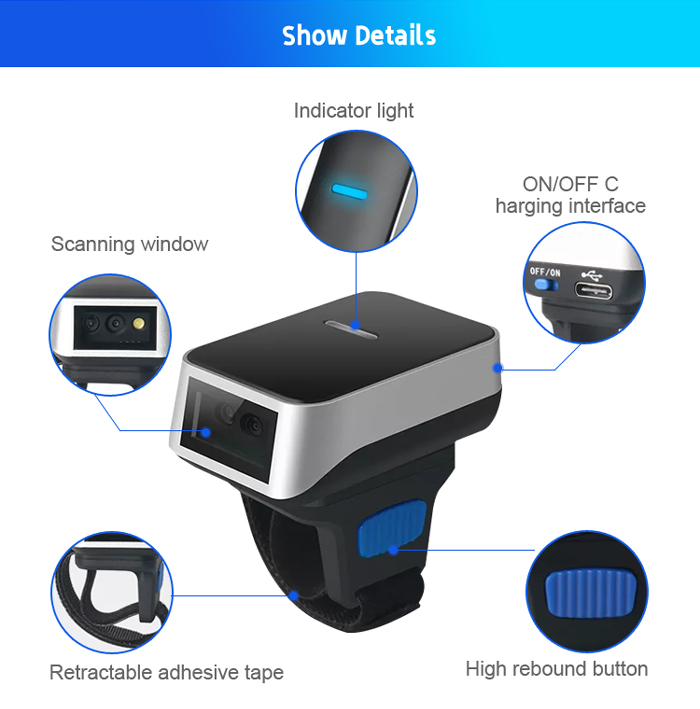

Features of 2D barcode scanner
* high performance scan engine
* Armed with high performance MCU, it can scan easily all mainstream 1D and 2D barcode;
* Easily scanning 3mil barcode, meeting the requirement of most cases;
* Supports Bluetooth 4.2 and the transmission distance can reach 30m in outdoor and it can be connected to PC directly;
* Supports multiple working mode (storage mode, simotaneous mode) to meet different scanning
requirement;
* Supports bluetooth HID, SPP, BLE mode to meet diverse requirement;
* Supports simotaneous mode, which is scan and update at the same time; it can store 20,000 codes;
The wireless scanner must be connected with a host machine, which can be PC, android machine or other intelligent terminal which has USB pr Bluetooth interface.
Host USB interface【USB female connector】
Parameters of Bluetooth QR Code Reader
Performance | |
Communication | USB-KBW， wireless Bluetooth |
Image sensor | CMOS |
Resolution | 300,000 pixels， 640*480 |
Resolution | ≥3mil/0.076mm （PCS90%,CODE 39） |
Depth of field | 30mm~500mm （depending on different barcode） |
Decode speed | 65CM/S |
Scan mode | Manual trigger; auto sense; continuous mode |
Notification | LED, beeper, vibrator |
FOV | 41° * 31° |
Scan angle | Test Conditions： CODE39,10mil/0.25mm,PCS90% |
Roll: ±360°; Pitch:±60°; Skew: ±55° | |
Print contrast: | ≥20% |
Environmental brightness: | Dark environemtn, indoor natural light |
Symbologies | 1D： UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code93， Code 11， Interleaved 2 of 5， Matrix 2 of 5， Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5） ,Codabar（NW-7）， MSI，GS1 Databar(Omnidirectional,Limited, Expanded)， China Post, Tepepen, Febraban,GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix， PDF417, Micro PDF 417， MaxiCode,Aztec， HanXin Code, etc. |
Wireless Specifications | |
Wireless communication mode | Simotanous mode; storage mode |

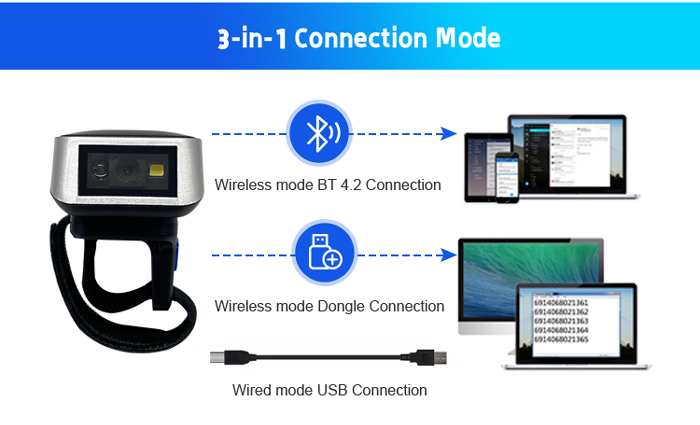

Communication | USB-KBW, Bluetooth (HID, SPP, BLE), Virtual bluetooth |
Wireless standard | Bluetooth 4.2 |
Transmission distance | 30meters Bluetooth（Open distance） |
Memoery | 350Kb （over 20,000 Product code） |
Battery capacity | 360mAh |
Charging time | About 1 hours(5V@1000mA) |
Continuous scan period | ≥2hours |
Standby period | ≥4 weeks |
Supporting OS | Windows， Mac OS， IOS, Linux， Unix， Android |
Mechanical Specifications | |
Scanner weight | About 35g （without cable） |
Package weight | About 125g |
Scanner dimension | L52.0mm * W35.0mm * H45.4mm |
Package Size | L120mm * W104mm * H40mm |
Cable length | 1.0m |
Interface type | Type C |
Working voltage | DC 5V |
Working current | 200mA（Average Work） |
Working environment | |
Working | 0℃ to 50℃ |
Storage | -30℃ to 60℃ |
Humidity | 5% to 95%（non-condensing） |
Transport vibration | 10H@125RPM |

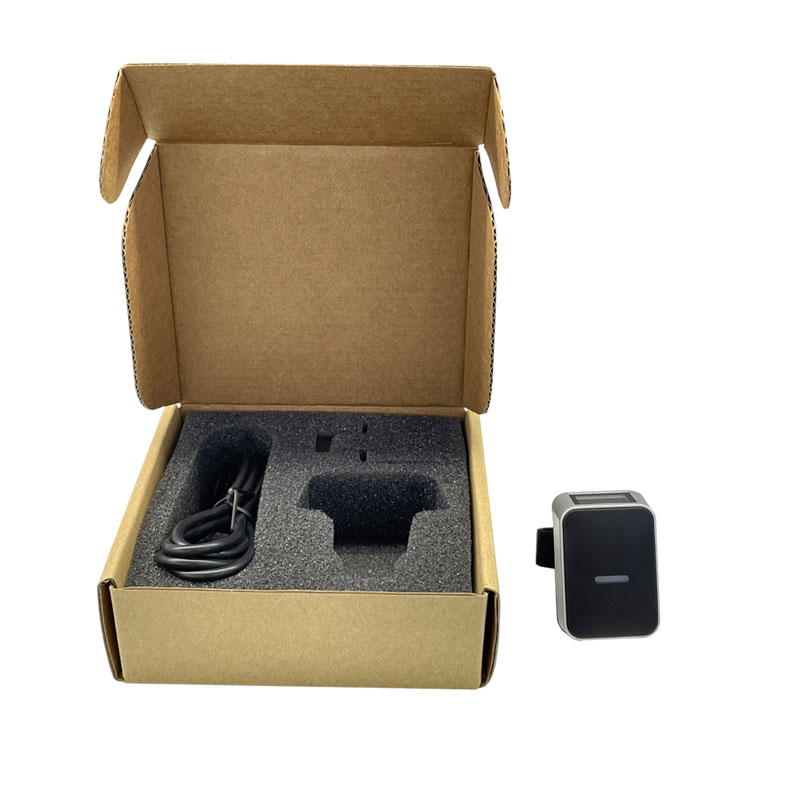

Accessories | |
Cable | USB calbe: used to connect scanner and host machine, charing and USB communication |
Receiver | Used for wireless transmission |
BriefManual | Used for general purpose configuration |
